DIXTRAC: Automated Disk Drive Characterization

Summer 2008: A new version of the DIXtrac code has been released as part of the DiskSim 4.0 simulator.

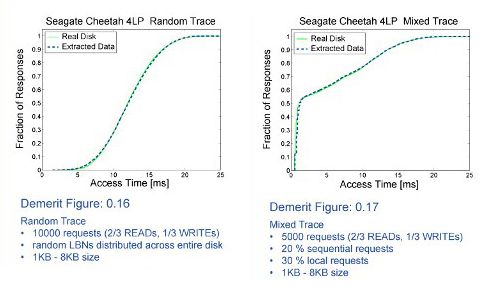

Synthetic traces run on a real disk compared to runs on a disk simulator with extracted parameters.

Sophisticated disk schedulers and detailed disk simulators require extensive and accurate characterizations of disk drive performance. Such characterizations include data about mechanical delays, on-board caching and prefetching algorithms, command and protocol overheads, and logical-to-physical block mappings. Unfortunately, accurate characterizations have traditionally been difficult to acquire, relying on a collection of ad hoc techniques. As a result, detailed characterizations exist (in the public domain) for very few disk drives.

To address this problem, we have developed DIXtrac, a program for disk extraction running under Linux. Without human intervention, DIXtrac can automatically extract from SCSI disk drives accurate values for over 100 performance-critical parameters. It runs as a user-level application on linux, using the /dev/sg interface to pass SCSI commands directly to the device driver. DIXtrac uses a collection of pre-programmed test vectors to measure timings for mechanical and command processing overheads. It uses expert-system-like algorithms to identify layout and caching policies. Collectively, these parameters provide sufficient characterization to allow extremely accurate simulation of disk performance.

DIXtrac has been used to characterize six different disk models from three manufacturers. Performing a characterization consists of simply pointing DIXtrac at the disk of interest. The characterization process generally requires less than 3 minutes to complete (5 minutes in one case). Using the extracted characteristics to parameterize the DiskSim simulator, we observe very close matches between simulated and measured disk performance.
