IndexFS: Scaling File System Metadata Performance

The growing size of modern storage systems is expected to exceed billions of objects, making metadata scalability critical to overall performance. Many existing distributed file systems only focus on providing highly parallel fast access to file data, and lack a scalable metadata service.

We introduce a middleware design called IndexFS that adds support to existing file systems such as PVFS, Lustre, and HDFS for scalable high-performance operations on metadata and small files. IndexFS uses a table-based architecture that incrementally partitions the namespace on a per-directory basis using GIGA+ technique, preserving server and disk locality for small directories. An optimized log-structured layout is used to store metadata and small files efficiently. IndexFS applies two client-based storm-free caching techniques: bulk namespace insertion for creation intensive workloads such as N-N checkpointing; and stateless consistent metadata caching for hot spot mitigation.

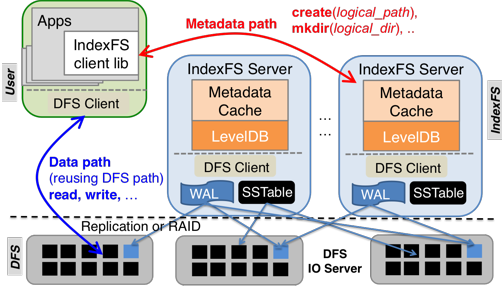

The architecture of IndexFS: middleware layered on top of existing cluster file systems.

By combining these techniques, IndexFS can scale to at least 128 metadata servers, because that is the biggest test we have tried so far. Experiments show our out-of-core metadata throughput out-performing existing solutions such as PVFS, Lustre, and HDFS by 50% to two orders of magnitude.


Per-server and aggregated throughput during mdtest with IndexFS layered on top of Lustre
and HDFS on a log scale. HDFS and Lustre have only one metadata server.

People

FACULTY

Garth Gibson

GRAD STUDENTS

Kai Ren
Qing Zheng
Swapil Patil

Publications

  • IndexFS: Scaling File System Metadata Performance with Stateless Caching and Bulk Insertion. Kai Ren, Qing Zheng, Swapnil Patil, Garth Gibson. ACM/IEEE Int'l Conf. for High Performance Computing, Networking, Storage and Analysis (SC'14), November 16-21, 2014, New Orleans, LA.
    Abstract / PDF [939K] / Slides [1M]

  • BatchFS: Scaling the File System Control Plane with Client-Funded Metadata Servers. Qing Zheng, Kai Ren, Garth Gibson. Proceedings of the 9th international Petascale Data Storage Workshop (PDSW '14) held in conjunction with Supercomputing '14. November 16, 2014, New Orleans, LA.
    Abstract / PDF [651K]

  • TABLEFS: Enhancing Metadata Efficiency in the Local File System. Kai Ren, Garth Gibson. 2013 USENIX Annual Technical Conference, June 26-28, 2013, San Jose, CA.
    Abstract / PDF [867K]

  • A Case for Scaling HPC Metadata Performance through De-specialization. Swapnil Patil, Kai Ren, Garth Gibson. 7th Petascale Data Storage Workshop held in conjunction with Supercomputing '12, November 12, 2012. Salt Lake City, UT. Supersedes Carnegie Mellon University Parallel Data Lab Technical Report CMU-PDL-12-111, November 2012.
    Abstract / PDF [512K]

Software Release

The code is open sourced under PDL license, which is a BSD-style three clause license.
