NASD: Network Attached Secure Disks
Contact: Garth Gibson
High-bandwidth, Low-latency, Scalable Storage SystemsWhile it is possible to construct off-the-shelf, widely distributed and massively parallel storage systems with inherent high bandwidth, achieving low-latency file access remains a significant challenge. We are designing, implementing, and evaluating scalable, distributed and parallel storage architectures, interfaces, and protocols to reduce access latency comprehensively. Our goal is to define the evolutionary path and revolutionary changes that will enable commodity storage components to be the building blocks of high-bandwidth, low-latency, secure scalable storage systems.

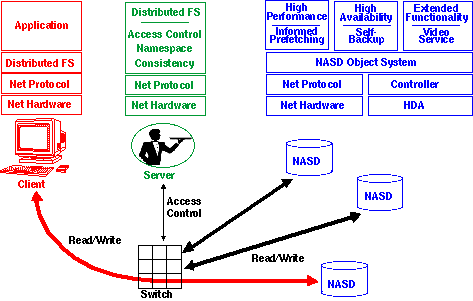

Our current definition for a NASD device includes all storage systems that exhibit the following properties: direct client-drive data transfer in a networked environment, asynchronous oversight by the high level filesystem, cryptographic support for the integrity of requests, storage self management opportunities derived from a more abstract and independent role for storage systems, the ability to extend the feature set of a NASD for the purpose of applications, as well as for the client operating system.
This is the World Wide Web home page of the DARPA/ITO project on "Secure Distributed and Parallel File Systems Based on Network-Attached Autonomous Disk Drives" which we have shortened to "Network-Attached Secure Disks (NASD)." NASD is supported in ITO's Scalable Systems and Software Services subprogram and carried out in the School of Computer Science at Carnegie Mellon University by the Parallel Data Laboratory, Garth Gibson, principal investigator. Please see our section on Work at CMU for a look at the major NASD Project Components.
Enabling NASD: The Evolution of Drive ElectronicsThe evolution of drive electronics over the next 5 years directly supports one of NASD's key enabling technologies -- a powerful on-drive microprocessor capable of executing the drive's embedded file system, networking and security code. Driving this evolution is the manufacturers need to reduce cost by integrating most drive electronics into a single custom ASIC. This evolution, from multi-chip solutions, such as the 1996 Seagate Barracuda (shown on the left) to the 1997 Quantum Trident ASIC (middle), allows drive manufacturers to ride the exponential growth in VLSI technology. Projecting VLSI-ASIC technology into the future, the entire 1997 Quantum Trident ASIC (~100,000 gates) will fit into one quarter of a 1999 ASIC chip (on the right). The remainder of the 1999 ASIC could then be used to support a 200+ MHz class microprocessor plus hardware support for cryptography and networking. The integration would reduce drive costs by eliminating the need for a separate microprocessor (currently available are 30+ MHz 68020 class processors) while providing enough processing cycles for the ultra-precise servo algorithms necessary to continue the drive's 60% per year growth in density.
